ペルチェ素子_OTシリーズ - 日本ミック株式会社

メーカー型番	品名	Qc Max ΔT=0℃ CTh=27℃	ΔT Max Qc=0W Th=27℃	長さ	幅	高さ	製品詳細
430290-501	OT08-04-F0-0203-11-W2.25	0.2 W	68 °C	0.134 in [ 3.4 ] mm	0.134 in [ 3.4 ] mm	0.096 in [ 2.4 ] mm	詳細
430290-503	OT08-04-F0-0203-GG-W2.25	0.2 W	68 °C	0.134 in [ 3.4 ] mm	0.134 in [ 3.4 ] mm	0.096 in [ 2.4 ] mm	詳細

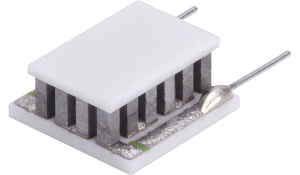

45850-502	OT08-08-F0-0303-11-W2.25	0.4 W	68 °C	0.134 in [ 3.4 ] mm	0.197 in [ 5 ] mm	0.096 in [ 2.4 ] mm	詳細
45850-503	OT08-08-F0-0303-GG-W2.25	0.4 W	68 °C	0.134 in [ 3.4 ] mm	0.197 in [ 5 ] mm	0.096 in [ 2.4 ] mm	詳細
430834-501	OT08-11-F1-0305-11-W2.25	0.5 W	68 °C	0.197 in [ 5 ] mm	0.134 in [ 3.4 ] mm	0.096 in [ 2.4 ] mm	詳細
430834-503	OT08-11-F1-0305-GG-W2.25	0.5 W	68 °C	0.197 in [ 5 ] mm	0.134 in [ 3.4 ] mm	0.096 in [ 2.4 ] mm	詳細
430828-501	OT08-18-F2-0505-11-W2.25	0.9 W	68 °C	0.197 in [ 5 ] mm	0.264 in [ 6.7 ] mm	0.096 in [ 2.4 ] mm	–
430828-502	OT08-18-F2-0505-GG-W2.25	0.9 W	68 °C	0.197 in [ 5 ] mm	0.264 in [ 6.7 ] mm	0.096 in [ 2.4 ] mm	–
387001206	OT08-18-F2-0505-11-EP-W2.25	0.9 W	68 °C	0.197 in [ 5 ] mm	0.264 in [ 6.7 ] mm	0.096 in [ 2.4 ] mm	–
430001-501	OT12-12-F0-0406-11-W2.25	0.9 W	68 °C	0.24 in [ 6.1 ] mm	0.24 in [ 6.1 ] mm	0.106 in [ 2.7 ] mm	–
430001-505	OT12-12-F0-0406-GG-W2.25	0.9 W	68 °C	0.24 in [ 6.1 ] mm	0.24 in [ 6.1 ] mm	0.106 in [ 2.7 ] mm	–
430003-505	OT12-18-F0-0606-11-W2.25	1.3 W	68 °C	0.24 in [ 6.1 ] mm	0.319 in [ 8.1 ] mm	0.106 in [ 2.7 ] mm	–
430003-501	OT12-18-F0-0606-GG-W2.25	1.3 W	68 °C	0.24 in [ 6.1 ] mm	0.319 in [ 8.1 ] mm	0.106 in [ 2.7 ] mm	–
430779-503	OT12-18-F0-0606-11-RT-W2.25	1.3 W	68 °C	0.24 in [ 6.1 ] mm	0.319 in [ 8.1 ] mm	0.106 in [ 2.7 ] mm	–
430779-501	OT12-18-F2A-0606-11-W2.25	1.3 W	68 °C	0.244 in [ 6.2 ] mm	0.283 in [ 7.2 ] mm	0.106 in [ 2.7 ] mm	–
430779-502	OT12-18-F2A-0606-GG-W2.25	1.3 W	68 °C	0.244 in [ 6.2 ] mm	0.283 in [ 7.2 ] mm	0.106 in [ 2.7 ] mm	–
430263-501	OT20-12-F0-0406-11-W2.25	1.5 W	68 °C	0.24 in [ 6.1 ] mm	0.24 in [ 6.1 ] mm	0.086 in [ 2.2 ] mm	–
430263-502	OT20-12-F0-0406-GG-W2.25	1.5 W	68 °C	0.24 in [ 6.1 ] mm	0.24 in [ 6.1 ] mm	0.086 in [ 2.2 ] mm	–
430263-503	OT20-12-F0-0406-22-W2.25	1.5 W	68 °C	0.24 in [ 6.1 ] mm	0.24 in [ 6.1 ] mm	0.086 in [ 2.2 ] mm	–
430005-501	OT08-32-F0-0707-11-W2.25	1.6 W	68 °C	0.26 in [ 6.6 ] mm	0.327 in [ 8.3 ] mm	0.096 in [ 2.4 ] mm	–
430005-518	OT08-32-F0-0707-11-EP-W2.25	1.6 W	68 °C	0.26 in [ 6.6 ] mm	0.327 in [ 8.3 ] mm	0.096 in [ 2.4 ] mm	–
430007-509	OT15-30-F2A-0610-11-W2.25	2.8 W	68 °C	0.406 in [ 10.3 ] mm	0.484 in [ 12.3 ] mm	0.086 in [ 2.2 ] mm	–
430007-506	OT15-30-F2A-0610-GG-W2.25	2.8 W	68 °C	0.406 in [ 10.3 ] mm	0.484 in [ 12.3 ] mm	0.086 in [ 2.2 ] mm	–
387002598	OT15-30-F2A-0610-11-EP-W2.25	2.8 W	68 °C	0.406 in [ 10.3 ] mm	0.484 in [ 12.3 ] mm	0.086 in [ 2.2 ] mm	–
430009-501	OT08-66-F0-1009-11-W2.25	3.3 W	68 °C	0.384 in [ 9.8 ] mm	0.448 in [ 11.4 ] mm	0.096 in [ 2.4 ] mm	–
430009-502	OT08-66-F0-1009-GG-W2.25	3.3 W	68 °C	0.384 in [ 9.8 ] mm	0.448 in [ 11.4 ] mm	0.096 in [ 2.4 ] mm	–
102066008007	OT08-66-F0-1009-11-RT-W2.25	3.3 W	68 °C	0.384 in [ 9.8 ] mm	0.448 in [ 11.4 ] mm	0.096 in [ 2.4 ] mm	–
430264-503	OT20-30-F2A-0610-11-W2.25	3.7 W	68 °C	0.406 in [ 10.3 ] mm	0.484 in [ 12.3 ] mm	0.071 in [ 1.8 ] mm	–
430264-502	OT20-30-F2A-0610-GG-W2.25	3.7 W	68 °C	0.406 in [ 10.3 ] mm	0.484 in [ 12.3 ] mm	0.071 in [ 1.8 ] mm	–
430264-504	OT20-30-F2A-0610-11-EP-W2.25	3.7 W	68 °C	0.406 in [ 10.3 ] mm	0.484 in [ 12.3 ] mm	0.071 in [ 1.8 ] mm	–
430010-501	OT20-31-F1-0808-11-W2.25	3.9 W	68 °C	0.319 in [ 8.1 ] mm	0.319 in [ 8.1 ] mm	0.086 in [ 2.2 ] mm	–
430010-502	OT20-31-F1-0808-GG-W2.25	3.9 W	68 °C	0.319 in [ 8.1 ] mm	0.319 in [ 8.1 ] mm	0.086 in [ 2.2 ] mm	–
430278-507	OT20-32-F0-0808-11-W2.25	4 W	68 °C	0.319 in [ 8.1 ] mm	0.402 in [ 10.2 ] mm	0.086 in [ 2.2 ] mm	–
430278-506	OT20-32-F0-0808-GG-W2.25	4 W	68 °C	0.319 in [ 8.1 ] mm	0.402 in [ 10.2 ] mm	0.086 in [ 2.2 ] mm	–
430278-503	OT20-32-F0-0808-22-W2.25	4 W	68 °C	0.319 in [ 8.1 ] mm	0.402 in [ 10.2 ] mm	0.086 in [ 2.2 ] mm	–
430278-508	OT20-32-F0-0808-11-RT-W2.25	4 W	68 °C	0.319 in [ 8.1 ] mm	0.402 in [ 10.2 ] mm	0.086 in [ 2.2 ] mm	–
430274-501	OT12-62-F3-1211-11-W2.25	4.6 W	68 °C	0.441 in [ 11.2 ] mm	0.52 in [ 13.2 ] mm	0.106 in [ 2.7 ] mm	–
430274-502	OT12-62-F3-1211-GG-W2.25	4.6 W	68 °C	0.441 in [ 11.2 ] mm	0.52 in [ 13.2 ] mm	0.106 in [ 2.7 ] mm	–
430011-501	OT12-66-F0-1211-11-W2.25	4.9 W	68 °C	0.441 in [ 11.2 ] mm	0.559 in [ 14.2 ] mm	0.106 in [ 2.7 ] mm	–
430011-507	OT12-66-F0-1211-11-RT-W2.25	4.9 W	68 °C	0.441 in [ 11.2 ] mm	0.559 in [ 14.2 ] mm	0.106 in [ 2.7 ] mm	–
430011-508	OT12-66-F0-1211-TB-RT-W2.25	4.9 W	68 °C	0.441 in [ 11.2 ] mm	0.559 in [ 14.2 ] mm	0.106 in [ 2.7 ] mm	–
430011-509	OT12-66-F0-1211-GG-W2.25	4.9 W	68 °C	0.441 in [ 11.2 ] mm	0.559 in [ 14.2 ] mm	0.106 in [ 2.7 ] mm	–
430013-501	OT15-66-F0-1211-11-W2.25	6.2 W	68 °C	0.445 in [ 11.3 ] mm	0.567 in [ 14.4 ] mm	0.096 in [ 2.4 ] mm	–
430013-510	OT15-66-F0-1211-GG-W2.25	6.2 W	68 °C	0.445 in [ 11.3 ] mm	0.567 in [ 14.4 ] mm	0.096 in [ 2.4 ] mm	–
430265-501	OT20-66-F0-1211-11-W2.25	8.2 W	68 °C	0.445 in [ 11.3 ] mm	0.567 in [ 14.4 ] mm	0.086 in [ 2.2 ] mm	–
430265-502	OT20-66-F0-1211-GG-W2.25	8.2 W	68 °C	0.445 in [ 11.3 ] mm	0.567 in [ 14.4 ] mm	0.086 in [ 2.2 ] mm	–
430265-510	OT20-66-F0-1211-11-EP-W2.25	8.2 W	68 °C	0.445 in [ 11.3 ] mm	0.567 in [ 14.4 ] mm	0.086 in [ 2.2 ] mm	–

メーカー型番

品名

Qc Max
ΔT=0℃
CTh=27℃

ΔT Max
Qc=0W
Th=27℃

長さ

幅

高さ

データシート

製品詳細

430290-501

OT08-04-F0-0203-11-W2.25

0.2 W

68 °C

0.134 in
[ 3.4 ] mm

0.096 in
[ 2.4 ] mm

詳細

430290-503

OT08-04-F0-0203-GG-W2.25

0.2 W

68 °C

0.134 in
[ 3.4 ] mm

0.096 in
[ 2.4 ] mm

詳細

45850-502

OT08-08-F0-0303-11-W2.25

0.4 W

68 °C

0.134 in
[ 3.4 ] mm

0.197 in
[ 5 ] mm

0.096 in
[ 2.4 ] mm

詳細

45850-503

OT08-08-F0-0303-GG-W2.25

0.4 W

68 °C

0.134 in
[ 3.4 ] mm

0.197 in
[ 5 ] mm

0.096 in
[ 2.4 ] mm

詳細

430834-501

OT08-11-F1-0305-11-W2.25

0.5 W

68 °C

0.197 in
[ 5 ] mm

0.134 in
[ 3.4 ] mm

0.096 in
[ 2.4 ] mm

詳細

430834-503

OT08-11-F1-0305-GG-W2.25

0.5 W

68 °C

0.197 in
[ 5 ] mm

0.134 in
[ 3.4 ] mm

0.096 in
[ 2.4 ] mm

詳細

430828-501

OT08-18-F2-0505-11-W2.25

0.9 W

68 °C

0.197 in
[ 5 ] mm

0.264 in
[ 6.7 ] mm

0.096 in
[ 2.4 ] mm

–

430828-502

OT08-18-F2-0505-GG-W2.25

0.9 W

68 °C

0.197 in
[ 5 ] mm

0.264 in
[ 6.7 ] mm

0.096 in
[ 2.4 ] mm

–

387001206

OT08-18-F2-0505-11-EP-W2.25

0.9 W

68 °C

0.197 in
[ 5 ] mm

0.264 in
[ 6.7 ] mm

0.096 in
[ 2.4 ] mm

–

430001-501

OT12-12-F0-0406-11-W2.25

0.9 W

68 °C

0.24 in
[ 6.1 ] mm

0.106 in
[ 2.7 ] mm

–

430001-505

OT12-12-F0-0406-GG-W2.25

0.9 W

68 °C

0.24 in
[ 6.1 ] mm

0.106 in
[ 2.7 ] mm

–

430003-505

OT12-18-F0-0606-11-W2.25

1.3 W

68 °C

0.24 in
[ 6.1 ] mm

0.319 in
[ 8.1 ] mm

0.106 in
[ 2.7 ] mm

–

430003-501

OT12-18-F0-0606-GG-W2.25

1.3 W

68 °C

0.24 in
[ 6.1 ] mm

0.319 in
[ 8.1 ] mm

0.106 in
[ 2.7 ] mm

–

430779-503

OT12-18-F0-0606-11-RT-W2.25

1.3 W

68 °C

0.24 in
[ 6.1 ] mm

0.319 in
[ 8.1 ] mm

0.106 in
[ 2.7 ] mm

–

430779-501

OT12-18-F2A-0606-11-W2.25

1.3 W

68 °C

0.244 in
[ 6.2 ] mm

0.283 in
[ 7.2 ] mm

0.106 in
[ 2.7 ] mm

–

430779-502

OT12-18-F2A-0606-GG-W2.25

1.3 W

68 °C

0.244 in
[ 6.2 ] mm

0.283 in
[ 7.2 ] mm

0.106 in
[ 2.7 ] mm

–

430263-501

OT20-12-F0-0406-11-W2.25

1.5 W

68 °C

0.24 in
[ 6.1 ] mm

0.086 in
[ 2.2 ] mm

–

430263-502

OT20-12-F0-0406-GG-W2.25

1.5 W

68 °C

0.24 in
[ 6.1 ] mm

0.086 in
[ 2.2 ] mm

–

430263-503

OT20-12-F0-0406-22-W2.25

1.5 W

68 °C

0.24 in
[ 6.1 ] mm

0.086 in
[ 2.2 ] mm

–

430005-501

OT08-32-F0-0707-11-W2.25

1.6 W

68 °C

0.26 in
[ 6.6 ] mm

0.327 in
[ 8.3 ] mm

0.096 in
[ 2.4 ] mm

–

430005-518

OT08-32-F0-0707-11-EP-W2.25

1.6 W

68 °C

0.26 in
[ 6.6 ] mm

0.327 in
[ 8.3 ] mm

0.096 in
[ 2.4 ] mm

–

430007-509

OT15-30-F2A-0610-11-W2.25

2.8 W

68 °C

0.406 in
[ 10.3 ] mm

0.484 in
[ 12.3 ] mm

0.086 in
[ 2.2 ] mm

–

430007-506

OT15-30-F2A-0610-GG-W2.25

2.8 W

68 °C

0.406 in
[ 10.3 ] mm

0.484 in
[ 12.3 ] mm

0.086 in
[ 2.2 ] mm

–

387002598

OT15-30-F2A-0610-11-EP-W2.25

2.8 W

68 °C

0.406 in
[ 10.3 ] mm

0.484 in
[ 12.3 ] mm

0.086 in
[ 2.2 ] mm

–

430009-501

OT08-66-F0-1009-11-W2.25

3.3 W

68 °C

0.384 in
[ 9.8 ] mm

0.448 in
[ 11.4 ] mm

0.096 in
[ 2.4 ] mm

–

430009-502

OT08-66-F0-1009-GG-W2.25

3.3 W

68 °C

0.384 in
[ 9.8 ] mm

0.448 in
[ 11.4 ] mm

0.096 in
[ 2.4 ] mm

–

102066008007

OT08-66-F0-1009-11-RT-W2.25

3.3 W

68 °C

0.384 in
[ 9.8 ] mm

0.448 in
[ 11.4 ] mm

0.096 in
[ 2.4 ] mm

–

430264-503

OT20-30-F2A-0610-11-W2.25

3.7 W

68 °C

0.406 in
[ 10.3 ] mm

0.484 in
[ 12.3 ] mm

0.071 in
[ 1.8 ] mm

–

430264-502

OT20-30-F2A-0610-GG-W2.25

3.7 W

68 °C

0.406 in
[ 10.3 ] mm

0.484 in
[ 12.3 ] mm

0.071 in
[ 1.8 ] mm

–

430264-504

OT20-30-F2A-0610-11-EP-W2.25

3.7 W

68 °C

0.406 in
[ 10.3 ] mm

0.484 in
[ 12.3 ] mm

0.071 in
[ 1.8 ] mm

–

430010-501

OT20-31-F1-0808-11-W2.25

3.9 W

68 °C

0.319 in
[ 8.1 ] mm

0.086 in
[ 2.2 ] mm

–

430010-502

OT20-31-F1-0808-GG-W2.25

3.9 W

68 °C

0.319 in
[ 8.1 ] mm

0.086 in
[ 2.2 ] mm

–

430278-507

OT20-32-F0-0808-11-W2.25

4 W

68 °C

0.319 in
[ 8.1 ] mm

0.402 in
[ 10.2 ] mm

0.086 in
[ 2.2 ] mm

–

430278-506

OT20-32-F0-0808-GG-W2.25

4 W

68 °C

0.319 in
[ 8.1 ] mm

0.402 in
[ 10.2 ] mm

0.086 in
[ 2.2 ] mm

–

430278-503

OT20-32-F0-0808-22-W2.25

4 W

68 °C

0.319 in
[ 8.1 ] mm

0.402 in
[ 10.2 ] mm

0.086 in
[ 2.2 ] mm

–

430278-508

OT20-32-F0-0808-11-RT-W2.25

4 W

68 °C

0.319 in
[ 8.1 ] mm

0.402 in
[ 10.2 ] mm

0.086 in
[ 2.2 ] mm

–

430274-501

OT12-62-F3-1211-11-W2.25

4.6 W

68 °C

0.441 in
[ 11.2 ] mm

0.52 in
[ 13.2 ] mm

0.106 in
[ 2.7 ] mm

–

430274-502

OT12-62-F3-1211-GG-W2.25

4.6 W

68 °C

0.441 in
[ 11.2 ] mm

0.52 in
[ 13.2 ] mm

0.106 in
[ 2.7 ] mm

–

430011-501

OT12-66-F0-1211-11-W2.25

4.9 W

68 °C

0.441 in
[ 11.2 ] mm

0.559 in
[ 14.2 ] mm

0.106 in
[ 2.7 ] mm

–

430011-507

OT12-66-F0-1211-11-RT-W2.25

4.9 W

68 °C

0.441 in
[ 11.2 ] mm

0.559 in
[ 14.2 ] mm

0.106 in
[ 2.7 ] mm

–

430011-508

OT12-66-F0-1211-TB-RT-W2.25

4.9 W

68 °C

0.441 in
[ 11.2 ] mm

0.559 in
[ 14.2 ] mm

0.106 in
[ 2.7 ] mm

–

430011-509

OT12-66-F0-1211-GG-W2.25

4.9 W

68 °C

0.441 in
[ 11.2 ] mm

0.559 in
[ 14.2 ] mm

0.106 in
[ 2.7 ] mm

–

430013-501

OT15-66-F0-1211-11-W2.25

6.2 W

68 °C

0.445 in
[ 11.3 ] mm

0.567 in
[ 14.4 ] mm

0.096 in
[ 2.4 ] mm

–

430013-510

OT15-66-F0-1211-GG-W2.25

6.2 W

68 °C

0.445 in
[ 11.3 ] mm

0.567 in
[ 14.4 ] mm

0.096 in
[ 2.4 ] mm

–

430265-501

OT20-66-F0-1211-11-W2.25

8.2 W

68 °C

0.445 in
[ 11.3 ] mm

0.567 in
[ 14.4 ] mm

0.086 in
[ 2.2 ] mm

–

430265-502

OT20-66-F0-1211-GG-W2.25

8.2 W

68 °C

0.445 in
[ 11.3 ] mm

0.567 in
[ 14.4 ] mm

0.086 in
[ 2.2 ] mm

–

430265-510

OT20-66-F0-1211-11-EP-W2.25

8.2 W

68 °C

0.445 in
[ 11.3 ] mm

0.567 in
[ 14.4 ] mm

0.086 in
[ 2.2 ] mm

–
